The nasopharyngeal epithelial cell-line, NP69, immortalized by SV40 large T antigen transfection while retaining some characteristics of normal nasopharyngeal epithelial cells and NPC cell lines, 6‒10B (weakly metastatic), 5–8F (strongly metastatic), CNE1 (highly differentiated), CNE2 (poorly differentiated) and Sune1 (poorly differentiated), were obtained from the Cancer Research Institute, Southern Medical University (Guangzhou, China). Cells were cultured in Roswell Park Memorial Institute (RPMI) 1640 medium supplemented with 100 units/mL penicillin and 100 μg/mL streptomycin and 10% bovine serum (Biological Industries, Kibbutz Beit-Haemek, Israel) at 37 °C in 95% air/5% CO2. The EBV + NPC cell-line, C666-1, was considered for inclusion, as a generous gift from Prof. GSW Tsao of University of Hong Kong.23 However, C666-1 cells had a low capacity for tumor sphere formation, making this cell-line unsuitable for inclusion in the current work.

Cells were harvested, washed four times with PBS, digested with trypsin and suspended in serum-free medium DMEM/F12 (Biological Industries) with 2% B27 neuronal cell supplement, 20 ng/mL epidermal growth factor and 10 ng/mL basic fibroblast growth factor (all from PeproTech, Rocky Hill). 500 cells/mL were seeded into ultralow attachment 6-well plates (Corning, Inc., Corning, NY, USA) in serum-free medium, incubated for 7-days and lines drawn on the bottom of the plate to enable identification of tumor spheres with more than 50 cells and approximately 100 μm diameter under an inverted microscope.

Cell monolayers were cultured for 24 h and tumor spheres for 7-days before harvesting. RNA was isolated by RNAiso Plus Extraction Kit (TaKaRa Bio, Inc., Otsu, Japan), according to the manufacturer’s instructions, and quantified by Thermo NanoDrop 2000 (Thermo Fisher Scientific, Inc.). mRNA was converted into cDNA by reverse transcriptase reagent kit (Takara Biotechnology, Japan) and qPCR performed using RT-qPCR Master Mix reagent kit (Takara Biotechnology, Japan). Primer sequences for Oct-4, Sox2, Nanog, β-catenin, Snail, Vimentin, E-cadherin, Twist, CXCR4 and GAPDH are given in Table 1. GAPDH was used as internal control. PCR consisted of repeated cycles of denaturation at 95 °C for 2 min, followed by 42 cycles of denaturation at 95 °C for 15 s, annealing and extension at 60 °C for 30 sec and a final incubation at 72 °C for 30 sec in a Bio-Rad PCR thermocycler. RT‑qPCR data was analyzed by 2−ΔΔCq method and is expressed as fold change. The primers are listed in Table 2.

Cells were lysed and proteins extracted by kit (Beyotime Biotechnology, China) and protein concentration evaluated by BCA reagent kit (Beyotime Biotechnology, China). Proteins were separated on a 10% SDS PAGE gel, transferred to PVDF membrane (Millipore, Boston, USA), membrane blocked with 3% BSA (Sigma-Aldrich) in Tris-buffered saline at room temperature for 1 h and incubated with primary antibodies raised against GAPDH (ab9485; 1:2,500), Vimentin (ab45939; 1:1,000), N-cadherin (ab18203; 1:1,000), E-cadherin (ab15148; 1:1,000) or CXCR4 (ab74012; 1:1,000, all antibodies from Abcam, USA) at room temperature for 2 h or 4 °C overnight. Membranes were washed for 4 × 10 min in TBST solution and incubated with HRP-labelled goat anti-rabbit secondary antibody (BS13278; 1:5,000; Bioworld Technology, USA) for 1 h before washing 3× with TBST solution. Immunoblots were visualized by enhanced chemiluminescence (Pierce; Thermo Fisher Scientific, USA) using GAPDH expression as internal control and analyzed via software suite (Image Lab software 3.0, Bio-Rad Laboratories, Inc.).

Transwell filters (8-mm pore size) were either coated or not with 50 μL/well 1 mg/mL Matrigel (BD Biosciences) for use with 24-well plates. Cells at a density of 1 × 105 cells/well in serum-free medium were inoculated into the top chamber and 500 μL DMEM with 10% FBS into the lower chamber for 48 h incubation. Cells were removed from the Transwell upper surface and those on the lower surface were fixed with 100% methanol, stained with 0.5% hematoxylin solution, washed and dried. Cells were counted in five random microscopic fields with a hematocytometer under an inverted microscope.

76 paraffin wax-embedded specimens of NPC tissue and non-tumor tissue from patients with rhinitis were obtained from the The Zhujiang Hospital of Southern Medical University. No patient had received chemoradiotherapy prior to biopsy. The 71 NPC samples included 60 primary tumors and 11 secondary lymph node tumors. Two cases had distant metastasis (1700065: left submaxillary; 1701840: right eyebrow arch). 5-μm pathological tissue sections were baked at 72 °C for 1 h, dewaxed in xylene 3 times for 10 min each and treated with an ethanol gradient (100% → 95% → 80% → 70%). Slides were heated in citric acid buffer, pH 6.0, for 30 min, incubated with 3% hydrogen peroxide solution for 20 min to inhibit endogenous peroxidase and incubated with primary antibodies, anti-CXCR4 (1:100, ab74012, Abcam) and anti-CK (1:200, #54135S, CST), at 4 °C overnight. Secondary antibody, biotinylated goat anti-rabbit IgG (LSAB, IHC detection system kit, IHC001, Bioss), was added for 1 h at room temperature, sections washed in PBS and incubated with HRP conjugate for 20 min. before visualization with 30‒50 μL DAB solution (Bioss) and staining with hematoxylin. Sections were inspected under an inverted microscope.

5 × 105 aliquots 5‒8F CXCR4-positive and CXCR4-negative cells were injected into the caudal vein of male BALB/c nude mice (4-weeks, 16 grams). Mice were divided into four groups (n = 3): CXCR4+; CXCR4-; CXCR4+ treated with CXCR4 inhibitor, AMD3100; CXCR- with AMD3100. Mice treated with AMD3100 were given 2.5 μg/g AMD3100 every two days by intraperitoneal injection for a total of 10 times. Animals were housed in specific pathogen-free conditions at a constant 20 °C temperature, 50% humidity and 12 -h light/dark cycle in the animal facility, Southern Medical University. Fluorescence intensity of metastatic lesions was monitored using In Vivo Imaging System (IVIS). Mice were sacrificed 4-weeks after inoculation. All animal experiments were performed in accordance with the Guide for the Use and Care of Laboratory Animals and ethical approval was granted by the Experimental Animal Ethics Committee, Southern Medical University (nº 2022-0236).

Data are presented as mean ± SD. Tumor/metastasis formation rates in the mouse model were compared by Fisher’s exact test. Intergroup differences were analyzed by Student’s t-test. Categorical variables of M status, N status, sex and location were analyzed by Fisher’s exact test. Ranked variables of T-status and Tumor-Node-Metastasis (TNM) staging and randomly permuting samples of high versus low CXCR4+ cell content were analyzed by permutation test. All statistical analyses were performed using SPSS 17.0 software suite (SPSS, Inc., Illinois). All tests were 2-tailed and a p-value < 0.05 was considered to indicate statistical significance. All data is the result of at least 3 independent experiments.

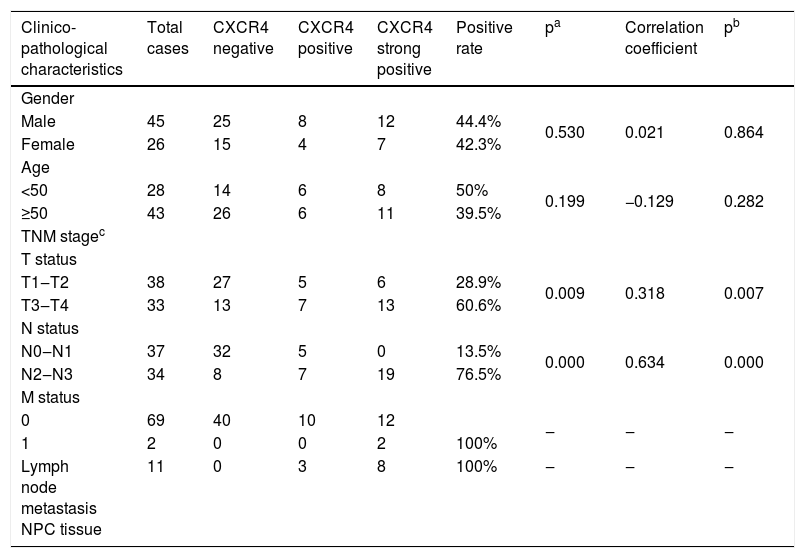

Immunohistochemical staining of 71 NPC (60 primary plus 11 lymph node secondary) and 5 non-tumor rhinitis tissues (see Table 1 for clinical details) was performed. CXCR4 expression was non-detectable in rhinitis tissues (Fig. 1A) but present in many of the 71 NPC tissues. Expression ranged from non-detectable (Fig. 1B), through weakly positive when expressed by ≤10% tumor cells (Fig. 1C) to strongly positive when expressed by ≥10% tumor cells (Fig. 1D). Pan-CK staining to show tumors of epithelial origin partially overlapped with CXCR4 expression, confirming that CXCR4+ cells were NPC cells (Fig. 1E‒H). CXCR4 expression correlated with T-stage (r = 0.318, p<0.01) and N stage (r = 0.634, p<0.001) with higher expression at stage T3‒4 than T1‒2 group (60.6% vs. 28.9%) and at stage N2‒3 than N0‒1 (76.5% vs. 13.5%, Table 1). CXCR4 showed strong positive expression in the primary pathological specimens from the two patients who had distant metastases (1700065: left submandibular; 1701840: right eyebrow arch). The marker was also expressed in all the secondary lymph node tumors with 8/11 showing strong positive expression (results not shown). The results suggest a link between CXCR4 expression and NPC metastasis.

Fig. 1.

Spindle-shaped CXCR4+ cells in NPC tumor and rhinitis non-tumor tissues. (A) CXCR4 expression (non-detectable) in nasopharyngeal rhinitis tissue; (B‒D) CXCR4 expression in nasopharyngeal carcinoma tissues, (B) Non-deectable, (C) Weakly positive (≤10% of all cancer cells) and (D) Strongly positive (≥10% of all cancer cells); (E‒F) Immunohistochemical staining of CXCR4 in nasopharyngeal primary carcinoma tissues and secondary lymph node metastases; (G‒H) Pan-CK immunohistochemical staining in serial sections of nasopharyngeal primary carcinoma tissues and secondary lymph node metastases. Overlapping expression of CXCR4 and PAN-CK can be seen (1E and 1G; 1F and 1H). Most CXCR4+ cells were also CK+; (I) Cell membrane and cytosolic expression of CXCR4 in nasopharyngeal carcinoma cells. CXCR4+ cells were usually spindle-shaped; (J) A single or small number of CXCR4+ cells may be seen in the micrometastatic foci of lymph node metastatic cancer tissues; (K) CXCR4+ cells can be seen in tight clusters at the edges of tumor tissues; (L‒M) A line of CXCR4+ NPC cells may be seen, perhaps indicating migratory activity (red line); (N) Most metastatic NPC cells in lymph node tissue expressed CXCR4; (O) CXCR4+ NPC cells in the vasculature.

CXCR4+ cells generally had spindle-shaped morphology with both cell membrane and cytoplasmic marker expression (Fig. 1I and 1I-enlarged). CXCR4-positive cells were sometimes tightly clustered at the edge of tumor tissues (Fig. 1K) and tended to be distributed along the invasion path (Fig. 1L and 1 M). Most lymph node metastatic cells were CXCR4+, particularly among cells within invasive regions (Fig. 1N), and a single CXCR4-positive cell could be seen in the micrometastatic lesion (Fig. 1J). CXCR4+ tumor cells could also be seen in vascular tissue (Fig. 1O), indicating a role for CXCR4+ tumor cells in NPC metastasis, vascular invasion and distant lesion formation.

All NPC cell-lines tested had higher CXCR4 expression than the immortalized nasopharyngeal NP69 cell line and mRNA and protein levels were higher in 5‒8F, CNE2 and SUNE1 than in 6‒10B or CNE1 (Fig. 2A and 2B). These data are consistent with the findings from the patient samples and show that CXCR4 expression was higher in highly metastatic or poorly differentiated cells, supporting the view that CXCR4 is involved in NPC metastasis and differentiation.

Fig. 2.

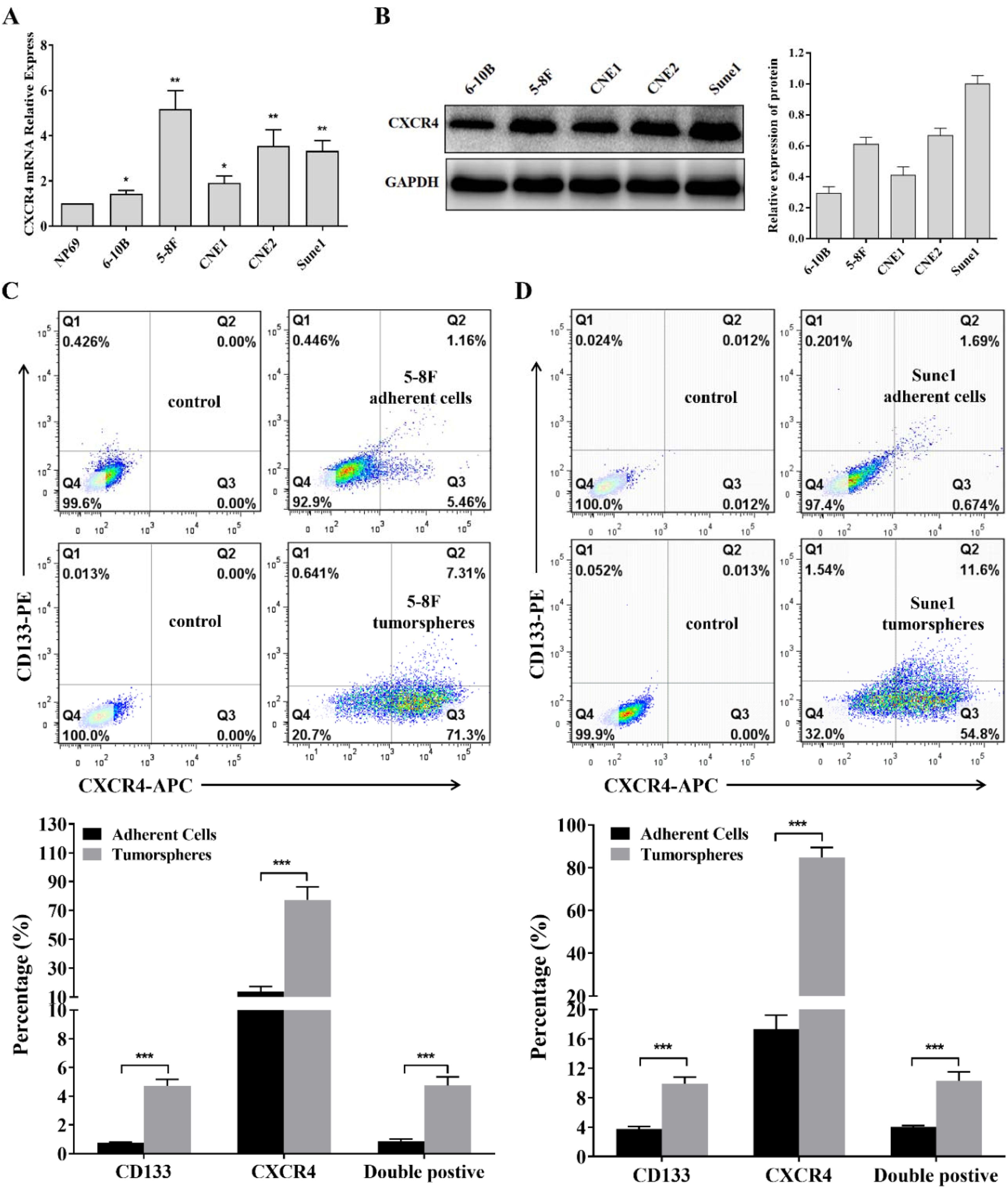

CXCR4 and CD133 expression in nasopharyngeal carcinoma cells. (A) RT-qPCR assays of CXCR4 mRNA in NPC cell-lines and NP69 control; (B) Western blotting to show CXCR4 protein in NPC cell-lines; (C) Percentage of CD133+ ((5-8F Q1 + Q2) - (control Q1 + Q2)) and CXCR4+ ((5-8F Q3 + Q4) - (control Q3 + Q4)) 5-8F adherent cells and tumor sphere cells. Most CD133+ cells were also CXCR4 + . Flow cytometry outputs are shown to the left with quantitative analysis to the right; (D) Percentage of CD133+ ((Sune1 Q1 + Q2) - (control Q1 + Q2)) and CXCR4+ ((Sune1 Q3 + Q4) - (control Q3 + Q4)) Sune1 adherent cells and tumor sphere cells. Most CD133+ cells were also CXCR4 + . Flow cytometry outputs are shown to the left with quantitative analysis to the right. Bars represent means ± SD of three independent experiments; * p < 0.05, ** p < 0.01, *** p < 0.001. RT-qPCR, Quantitative Reverse Transcription Polymerase Chain Reaction; NPC, Nasopharyngeal Carcinoma.

Flow cytometry detection of cells expressing CXCR4 and CD133 showed adherent 5‒8F cells had 1.18% CXCR4+ and 6.62% CD133+ cells but tumor spheres formed from 5‒8F cells were 7.938% CXCR4+ and 78.61% CD133 + . Double-positive staining cells accounted for 1.16% of the adherent population and 7.31% of the tumor sphere population (Fig. 2C). Sune1 cells had values of 1.855% CD133+ and 2.34% CXCR4+ in the adherent population, 13.075% CD133+ and 66.387% CXCR4+ in tumor spheres and double-positive staining cells accounted for 1.678% of the adherent population and 11.587% of the tumor sphere population (Fig. 2D). A greater proportion of 5‒8F and Sune1 tumor sphere cells were CD133+ and CXCR4+ than adherent cells and most CD133-positive cells also expressed CXCR4. The data is consistent with the view that stem cells and CXCR4+ cells were enriched in tumor spheres.

5‒8F CXCR4+ cells were isolated from tumor spheres by magnetic beads and cultured in serum-free or complete medium for 72 h. Most cells cultured in serum-free medium were fusiform with some polygonal cells (Fig. 3A) but those cultured in complete medium were almost entirely polygonal with characteristics of tumor cells (Fig. 3B). 5‒8F CXCR4+ cells isolated from the tumor sphere had greater tumor sphere-forming potential than CXCR4- tumor sphere or adherent cells which showed equivalent rates of tumor sphere formation (Fig. 3C). Similar results were obtained with Sune1 cells (Fig. 3C).

Fig. 3.

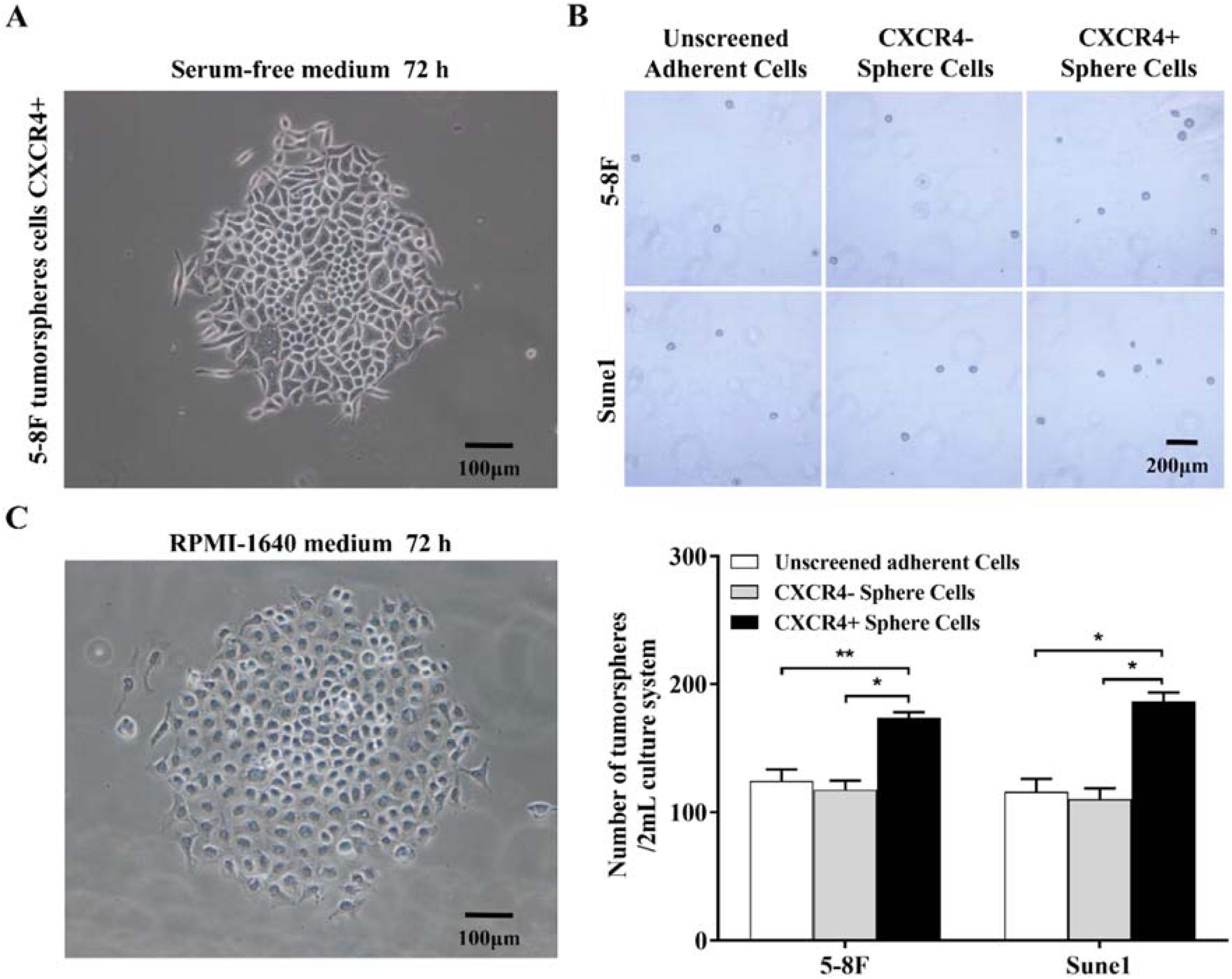

Morphological characteristics of CXCR4- and CXCR4+ tumor spheres. (A) Fusiform CXCR4+ tumor sphere cells after culture in serum-free medium; (B) Differentiated CXCR4+ tumor sphere cells after culture in complete medium; (C) Tumor sphere formation by CXCR4+ and CXCR4- cells isolated from tumor spheres cells. Microscopic images are shown on the left and quantitative analysis on the right. Bars represent means ± SD of three independent experiments. * p < 0.05, ** p < 0.01.

5‒8F and Sune1 CXCR4+ cells isolated from the tumor sphere had higher rates of migration and invasion in Transwell assays than equivalent CXCR- cells. Treatment with the CXCR4 ligand, SDF-1, enhanced migration and invasion by CXCR4+ cells but not by CXCR- cells (Figs. 4A and 4B). The data imply the involvement of the SDF-1/CXCR4 axis in migration and invasion by 5‒8F and SUNE1 cells.

Fig. 4.

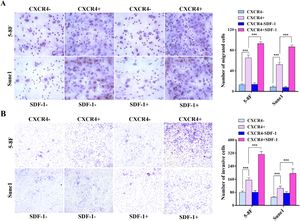

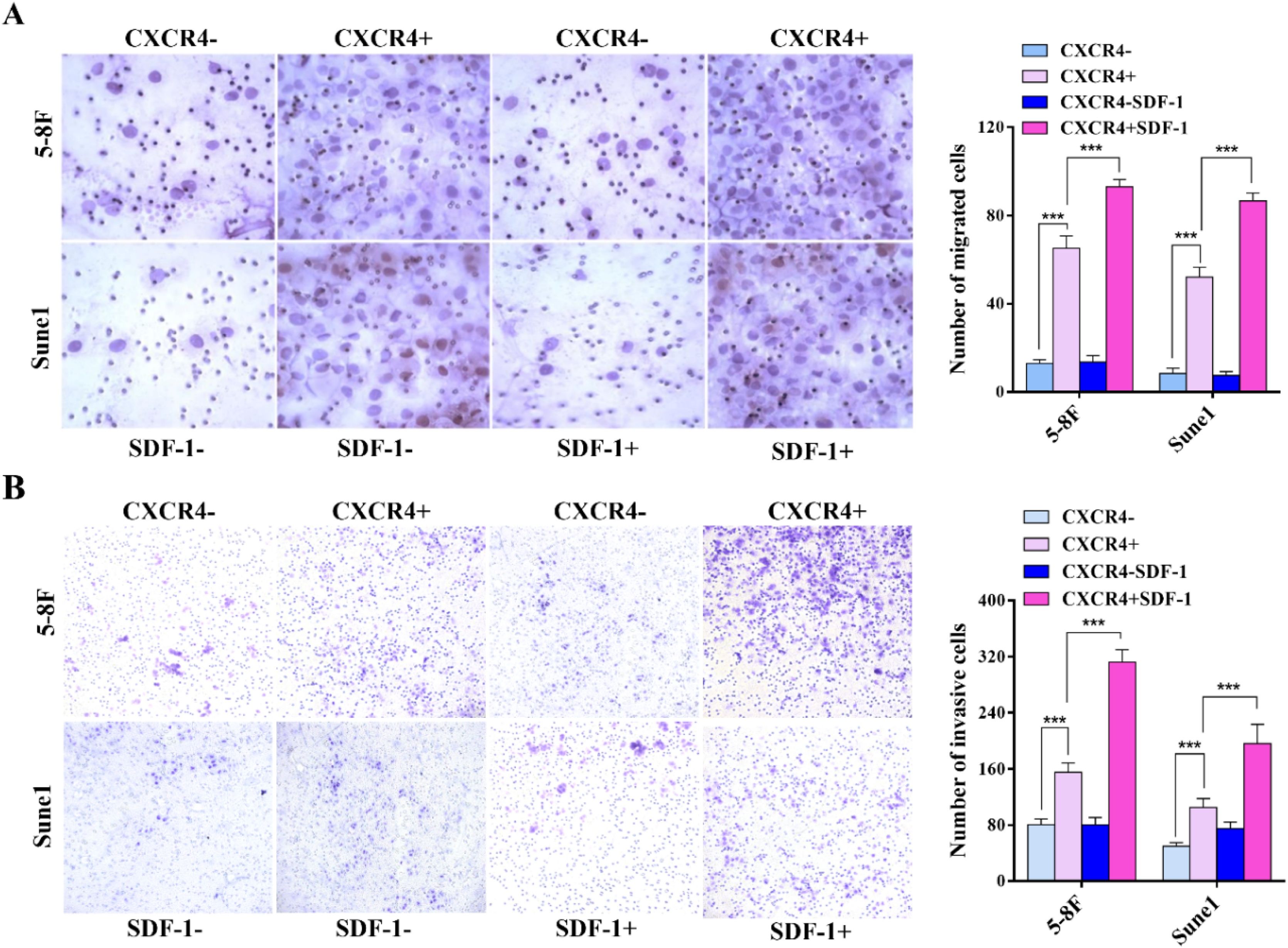

Migration and invasion of CXCR4+ and CXCR4- tumor sphere cells and the effect of SDF-1. (A) Migration of CXCR4+ and CXCR4- tumor sphere 5‒8F and Sune1 cells in the presence and absence of the CXCR4 ligand, SDF-1. Representative images are shown on the left with quantitative analysis on the right; (B) Invasion of CXCR4+ and CXCR4- tumor sphere 5‒8F and Sune1 cells in the presence and absence of the CXCR4 ligand, SDF-1. Representative images are shown on the left with quantitative analysis on the right. Bars represent means ± SD of three independent experiments. * p < 0.05, ** p < 0.01, *** p < 0.001.

in vivo treatment of mice with 5‒8F tumor spheres showed a higher rate of metastasis formation from CXCR4+ than from CXCR4- cells (Fig. 5). Metastasis formation was reduced when the CXCR4 inhibitor, AMD3100, was used. These data are consistent with the view that CXCR4+ tumor stem cells are more strongly metastatic and support the involvement of CXCR4 signaling in metastasis formation.

Fig. 5.

Metastasis formation from 5‒8F cells in a mouse model of NPC. IVIS images show the formation of metastases (colored areas) from inoculation with 5‒8F NPC tumor sphere cells. Inoculated cells were CXCR4+ or CXCR4-. The CXCR4 inhibitor, AMD1300, was administered, where indicated. NPC, Nasopharyngeal carcinoma; IVIS, In Vivo Imaging System.

Measurement of expression of genes involved in stemness and the EMT showed higher expression of Oct4, Nanog and Sox2 stemness genes and of Snail and Twist EMT genes in CXCR4+ tumor sphere cells compared with CXCR4- counterparts (Fig. 6). In addition, CXCR4+ cells had increased expression of the mesenchymal markers, vimentin and N-cadherin, and decreased expression of the epithelial marker, E-cadherin. The data indicate an association between CXCR4 expression and activity and the acquisition of stemness characteristics plus the promotion of the EMT in NPC tumor sphere cells.

Fig. 6.

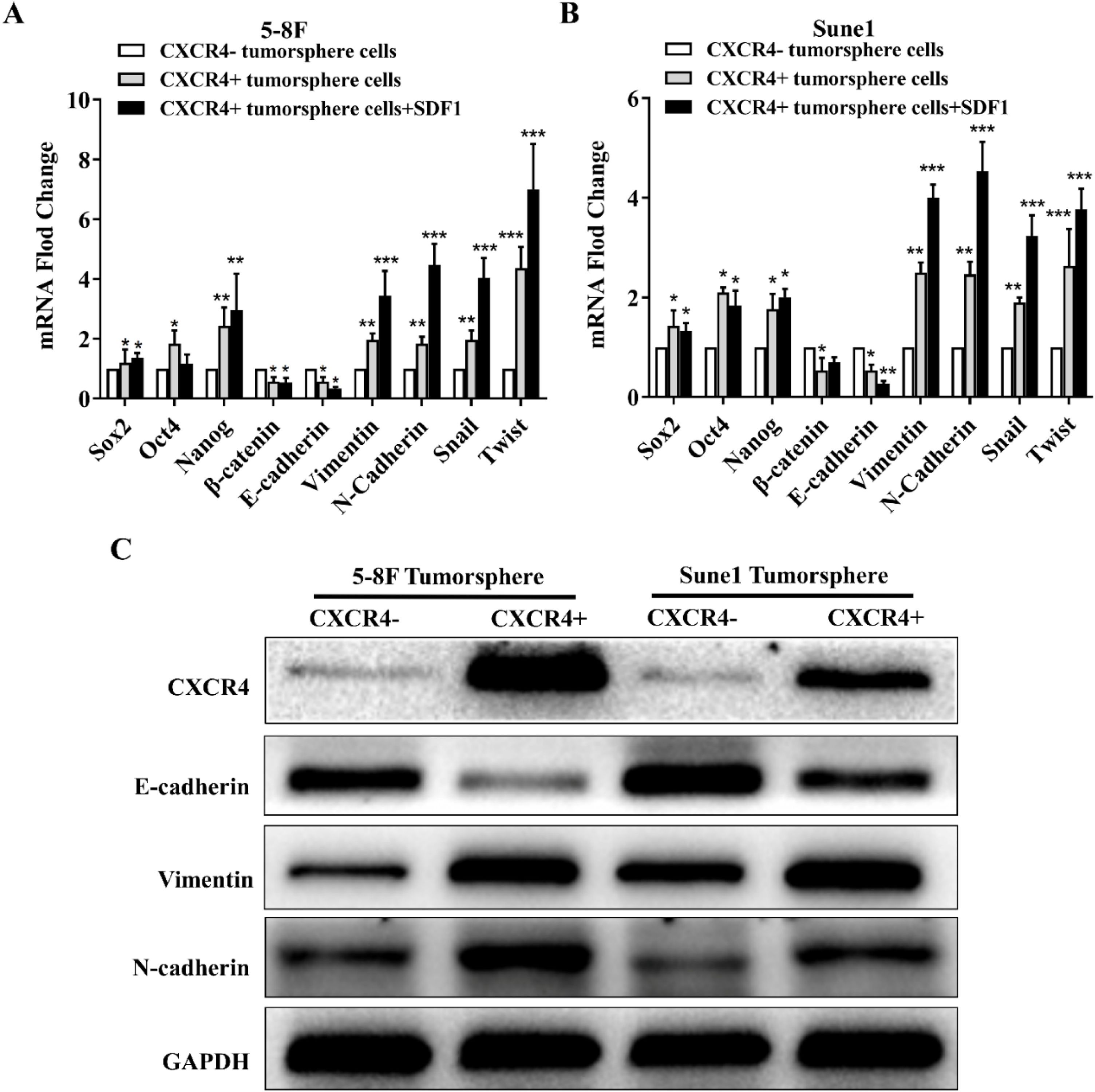

Expression of markers of stemness and of the EMT in 5‒8F and Sune1 cells. (A) Fold change in expression of mRNA of stemness genes, Oct4, Nanog and Sox2, EMT genes, Snail and Twist, mesenchymal marker genes, vimentin and N-cadherin, and of epithelial marker, E-cadherin in 5‒8F cells. Changes in mRNA expression were calculated relative to GAPDH; (B) Fold change in expression of mRNA of stemness genes, Oct4, Nanog and Sox2, EMT genes, Snail and Twist genes, mesenchymal markers, vimentin and N-cadherin, and of epithelial marker, E-cadherin in Sune1 cells. Changes in mRNA expression were calculated relative to GAPDH; (C) Western blot image to show expression of CXCR4, E-cadherin, vimentin, N-cadherin and GAPDH protein in 5‒8F and Sune1 CXCR4+ and CXCR4- tumor sphere cells. Bars represent means ± SD of three independent experiments. * p < 0.05, ** p < 0.01, *** p < 0.001. EMT, Epithelial-mesenchymal transition.
